TMLC-700 型多功能除渣器

TMLC-700 型多功能除渣器

0536-4252808
山东天利机械制造有限公司
山东省安丘市潍安路南首
2022-05-11 16:54:25 0

信息详情

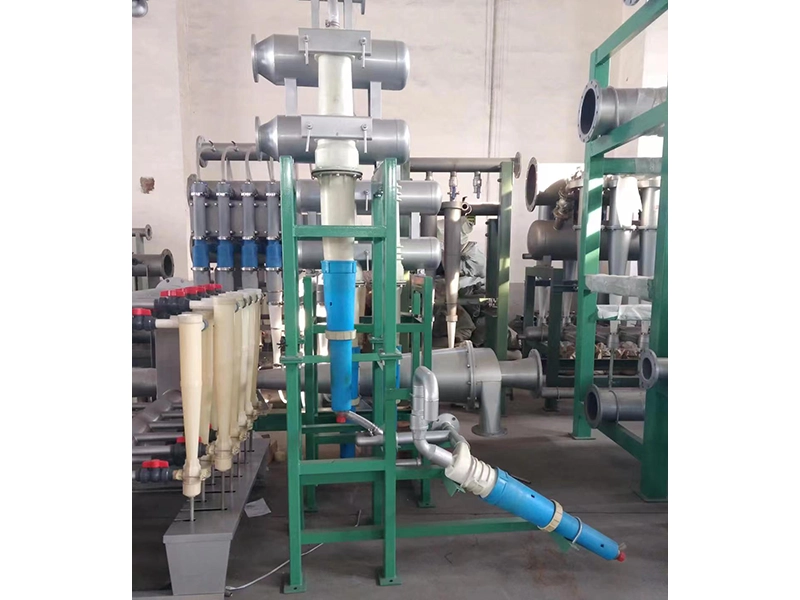

TMLC-700 型多功能除渣器

产品概述:

T M L C -700 型多功能除渣器是天利机械结合国内外先进技术的基础上开发研制而成的具有多种功能的新型除渣器,它利用离心原理去除浆料中的各种轻、重杂质。该除渣器具有全新的进浆设计,通过形成的加速流和较长的停留时间结合在一起,这种设计特点赋予了除渣器很高的分离作用,它可用在纸浆净化系统中,除去浆料中的混合废弃物、石蜡、粘着物、塑料片、泡沫、气体、沙石、铁屑等轻、重杂质。

Product overview:

TMLC-700 multifunctional centricleaner is a modern type of multifunctional pulp purification equipment designed by TIANLI company based on the domestic and foreign advanced technology. It uses centrifugal principle to remove various light and heavy impurities in pulp. The TMLC-700 centricleaner has a new feeding design, which is combined by the accelerated flow and long residence time. This design featured the centricleaner a high purification effect. It can be used in the pulp purification system to remove light and heavy impurities such as mixed waste, paraffin, adhesive, plastic sheet, foam, gas, sand and iron chips in the pulp.



主要技术参数

单支通过量: 500 ~ 700L/min

进浆压力: 0.2 ~ 0.35MPa

进浆浓度: 0 ~ 2.0%

单段重杂质体积排渣率: 6 ~ 8%(相对进浆流量)

单段轻杂质体积排渣率: 10 ~ 12%(相对进浆流量)

Main Technical Parameters

Pulp Inlet Capacity: 500 700L/min

Pulp Inlet Pressure: 0.2 0.35MPa

Pulp Inlet Concentration: 0 2.0

Heavy Impurity Volume Discharge Ratio of Single Stage: 6 8

(relative pulp inlet flow)

Light Impurity Volume Discharge Ratio of Single Stage: 10 12

(relative pulp inlet flow)

21
