产品概述:
TZC系列中浓除渣器是天利公司根据纸厂原料和纸种的变化,为满足客户提高除渣器效率,同时降低投资成本的要求,而最新研制的新型产品。该除渣器占地面积小,生产能力大,自动化可调式排渣操作简单,不易堵塞排渣口,净化效率高,纤维流失小。锥体耐磨,使用寿命长;没有传动,无需较多维护。有全自动和手动两种形式。
Product Overview

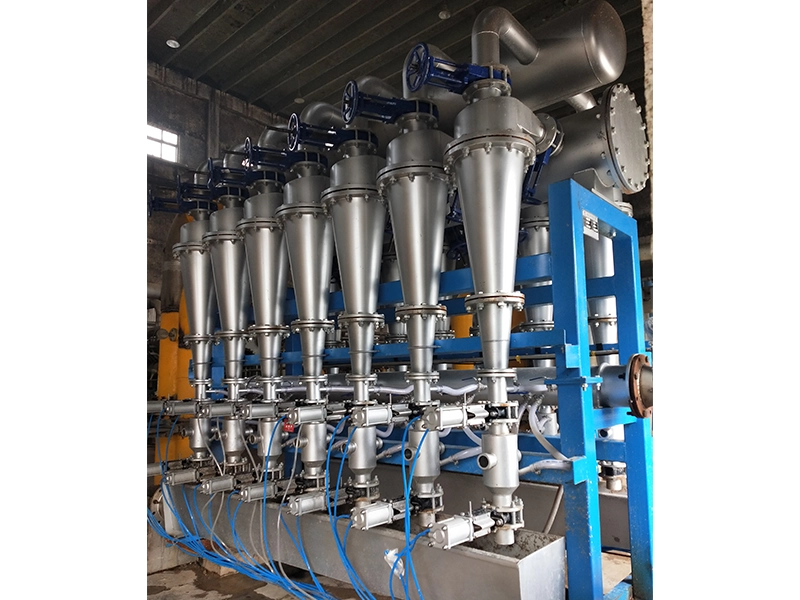

TZC series medium density cleaner is a new product designed by Tianli Machinery, which is based on the requirement of increasing the purification efficiency and decreasing the resource investment for customers, according to the variation of the raw material and the kind of end paper. It has the advantages of small covered floor area, large production capacity, simple automatic and adjustable reject discharge operation, free blockage in the reject discharge port, high cleaning efficiency and small fiber loss. The cone is very wear-resistant, so it has a long service life; there is no transmission within the centricleaners, so the maintenance cost can be reduced greatly. There are two forms for reject discharging: full automatic and manual form.
除渣器型号 Specification | TZC-1500 | TZC-2000 | TZC-2500 |
单支通过量 Feeding Flow (L/min) | 1500 | 2000 | 2500 |
进浆压力 Feeding Pressure (MPa) | 0.32 - 0.40 MPa | 0.32-0.40 MPa | 0.32-0.40 MPa |
进出浆压力差 Pressure Drop (MPa) | 0.05-0.15 | 0.05-0.15 | 0.05-0.15 |
进浆浓度 Feeding Density (%)
|
0 - 1.5 | 0-1.5 | 0-1.5 |
最小良浆压力 Mini Accepts Pressure (MPa) |
0.01-0.05 | 0.01-0.05 | 0.01-0.05 |
冲洗水压力 Flush Water Pressure(MPa) | 0.05 MPa≥Feeding pressure |
