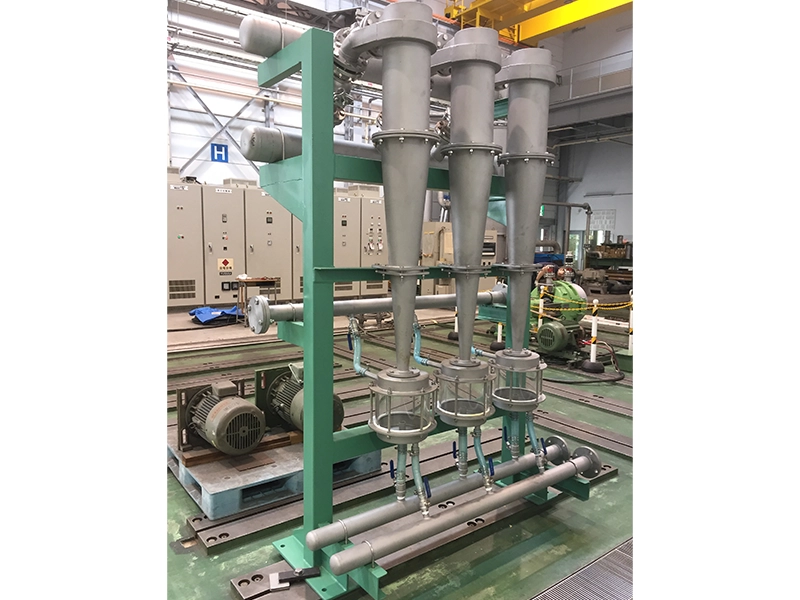

TMZC多功能重质除渣器

产品概述:

TMZC 除渣器是公司在第一代产品的使用基础上,根据国内外用户的意见反馈,专为解决纸厂的除渣难题而设计的专利产品。该产品可根据用户需要调整结构,使其分别达到单独分离重杂质和轻、重杂质一起分离的目的,从而使用户的一次性投资额大大降低。该产品可分离的重杂质有砂石、铁屑、涂料及其他重质混合物。轻杂质有塑料片、泡沫、气体、油墨、粉尘等。底部的反冲水装置使除渣器可以在较高浓度下运行,降低了投资成本。



Product Introduction

TMZC centricleaner is a patented product, which is designed by Tianli Machinery to solve impurity removal difficulties for paper mills based on the first generation product and the feedback from abroad and domestic customers. The configuration of this product is adjustable, according to user requirement, to separate heavy impurity solely or separate light and heavy impurity jointly, reducing user resources investment consequently. It is capable of separating heavy reject such as gravel, scrap iron, dope and other heavy mixtures, as well as light rejects such as plastic piece, bubble, air, printing ink, powder and etc. The flush water device installed at the bottom can make the centricleaner operate in the higher density pulp, thus reduce the investment.

除渣器型号

Specification

TMZC-500

TMZC-600

TMZC-800

TMZC-1000

TMZC-1200

TMZC-1800

单支通过量

Feeding Flow (L/min)

500

600

800

1000

1200

1800

进浆压力

Feeding Pressure (MPa)

0.3-0.4

0.3-0.4

0.3-0.4

0.3-0.4

0.3-0.4

0.3-0.4

进出浆压力差

Pressure Drop

 (MPa)

0.13-0.15

0.13-0.15

0.13-0.15

0.13-0.15

0.13-0.15

0.13-0.15

进浆浓度

Feeding Density(%)



0-2.0

0-2.0

0-2.0

0-2.0

0-2.0

0-2.0

最小良浆压力

Min Accept Pressure

MPa

0.1

0.1

0.1

0.1

0.1

0.1

最大操作温度:

Max Tempt of Operating (℃)

80

80

80

80

80

80
