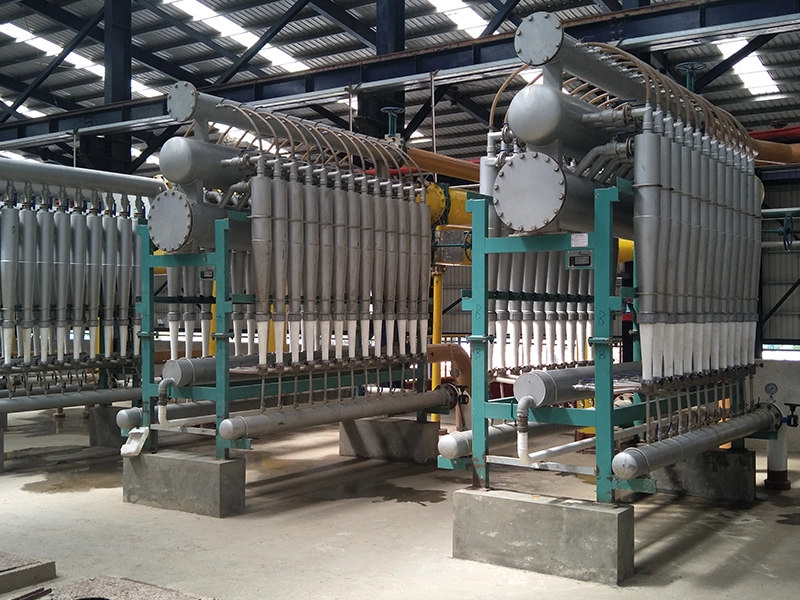

TSC 高效重质除渣器

TSC-1200/600/400

产品概述:

TSC 高效重质除渣器是一种利用离心原理去除浆料中杂质的正向除渣器,可用在各种浆料净化系统中除去浆料中的砂石、铁屑、尘埃及较大的油墨粒子等重杂质。TSC 重质除渣器可根据浆料的不同与轻质除渣器相结合,以达到理想的净化效果。

主要特点:

A 分体式结构:TSC 除渣器为分体式结构,整个除渣器可分为 3~4 节,便于拆装和更换。

B 不同的排渣方式:TSC 重质除渣器可根据用户不同的需求选择不同的排渣方式:压力排渣和开放式排渣,以适应您的工作环境。


TSC-600主要技术参数

单支通过量: 600L/min

进浆压力: 0.2-0.4MPa

压力降: 0.14-0.18MPa

进浆浓度: 0 2.0%

单段体积排渣率: 15 30%(相对进浆流量)

TSC-1200/600/400

TSC-400主要技术参数

单支通过量: 380 450L/min

进浆压力: 0.2-0.4MPa

压力降: 0.14-0.18MPa

进浆浓度: 0 2.0%

单段体积排渣率: 15 30%(相对进浆流量)


Product overview:

TSC high efficiency high weight centricleaner is a kind of forward centricleaner which uses centrifugal principle to remove impurities in the pulp. It can be used in various pulp purification systems to remove heavy impurities such as sand, iron chips, dust and large ink particles. TSC centricleaners can be combined with light slag remover according to different kind of pulp to achieve ideal purification effect.

Key features:

A Parted structure: TSC centricleaner is designed to be a parted structure. The whole centricleaner can be divided into 3-4 sections, which is convenient for disassembly and replacement.

B Different ways of residue dicharge: This centricleaner can be chosen different residue discharge ways:pressure residue discharge and open residue discharge, to adapt to their working environment according to different needs of users.


Main Technical Parameters of TSC-600

Single branch flow: 600L/min

Pulp inlet pressure: 0.2-0.4MPa

Pressure drop: 0.14-0.18MPa

Pulp inlet consistency: 0 2.0%

Single Stage Volume Residue

Discharge Ratio: 15 30%

(relative pulp inlet flow)

Main Technical Parameters of TSC-400

Single Branch Throughput: 380 450L/min

Pulp Inlet Pressure: 0.2-0.4MPa

Pressure Drop: 0.14-0.18MPa

Pulp Inlet Concentration: 0 2.0%

Single Stage Volume Residue

Discharge Ratio: 15 30%

(relative pulp inlet flow)














TSC-250/150

产品概述:

TSC 高效重质除渣器是一种高效而经济的小直径除渣器。该产品具有小的直径和延长的除渣器主体,能产生更高的离心力,小的锥角使外涡旋向内涡旋的流动有更好的逐步过渡,与此同时减少了除渣器内的阻力,产生更高的净化效果。特别设计用于除去要求更高的纸机流送、废纸制浆、化学制浆、纤维回收以及特别浆种等系统中细小的重杂质,如:泥污、松香颗粒、沙砾、颜料、锈垢、尘埃、油墨颗粒等杂质。处理后的浆料可以得到理想的净化效果。

主要技术参数

单支通过量: 252L/min

进出浆压力差: 0.15 0.18 MPa

进浆浓度: 0.3-1.5%

进浆压力: 0.28-0.38 MPa

TSC-250/150

Product overview:

TSC high efficiency heavy centricleaner is a kind of high efficiency and economic one with small diameter. The product has a small diameter and an extended main body ,which can produce a higher centrifugal force. The small cone angle makes the flow of the outer vortex to the inner vortex have a better gradual transition, at the same time, it reduces the resistance in the cleaner and produces a higher purification effect. It is specially designed to remove the small heavy impurities such as: mud, rosin particles, gravel, pigment, rust, dust, ink particles and other impurities in the approaching flow system, waste paper pulping, chemical pulping, fiber recovery and special pulp systems with higher requirements. The processed pulp can get ideal purification effect.

Main Technical Parameter

Single Branch Throughput: 252L/min

Pressure Difference of Inlet and Outlet:  0.15 0.18 MPa

Pulp Inlet Concentration:  0.3-1.5%

Pulp Inlet Pressure: 0.28-0.38MPa



TSC-150参数没有
