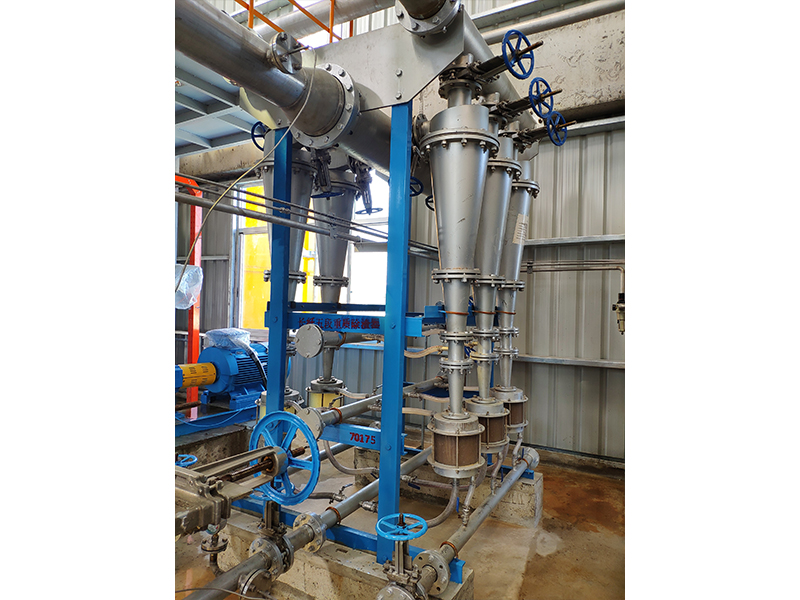

 TZC系列除渣器

产品概述:

TZC系列除渣器是天利公司根据纸厂原料和纸种的变化,为满足客户提高除渣器效率,同时降低投资成本的要求,而最新研制的新型产品。该除渣器占地面积小,生产能力大,自动化可调式排渣操作简单,不易堵塞排渣口,净化效率高,纤维流失小。锥体耐磨,使用寿命长;没有传动,无需较多维护。有全自动和手动两种形式

Product Overview

TZC series centricleaner is a new product designed by TIANLI companybased on the requirement of increasing the purification efficiency and decreasing the resource investment for customers, according to the variation of the raw material and the kind of end paper .The centricleaner has the advantages of small covered floor area, large production capacity, simple automatic and adjustable reject discharge operation, free blockage in the reject discharge port, high purification efficiency and small fiber loss. The cone is wear-resistant, which means a long service life; there is no transmission within the centricleaners, which means maintenance cost can be greatly reduced. There are two forms for reject discharging: fully automatic and manual.



主要技术参数

单支通过量: 1500L/min

进浆浓度: 0 ~ 2%

进浆压力: 0.25 ~ 0.4Mpa

冲洗水压力: 大于进浆压力0.05Mpa

Main Technical Parameters

Flow Rate of Pulp Inlet for One Branch: 1500L/min

Pulp Inlet Concentration: 0 ~ 2%

Pulp Inlet Pressure: 0.25 0.4MPa

Flush Water Pressure: greater than pulp inlet pressure 0.05Mpa
